Model
TPHF Series

Item specifics

Material
iron
Type
Solar Centrifugal Surface Pump
Certificate
CE, ISO9001
Warranty
1 year
MOQ
1 set

Review

Description

Advantages of Solar Powered Surface Water Pumps For Irrigation:
1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.
TECHNICAL DATA
NO.
Model
Power(w)
DC Voltage(v)
Max flow(m³/h)
Max head(m)
Outlet(inch)
81
TPHF6-24-48-550
550
48
6
24
1
82
TPHF21-14-72-750
750
72
21
14
2
83
TPHF26-15-72-1100
1100
72
26
15
2
87
TPHF50-17-96-1500
1500
96
50
17
3

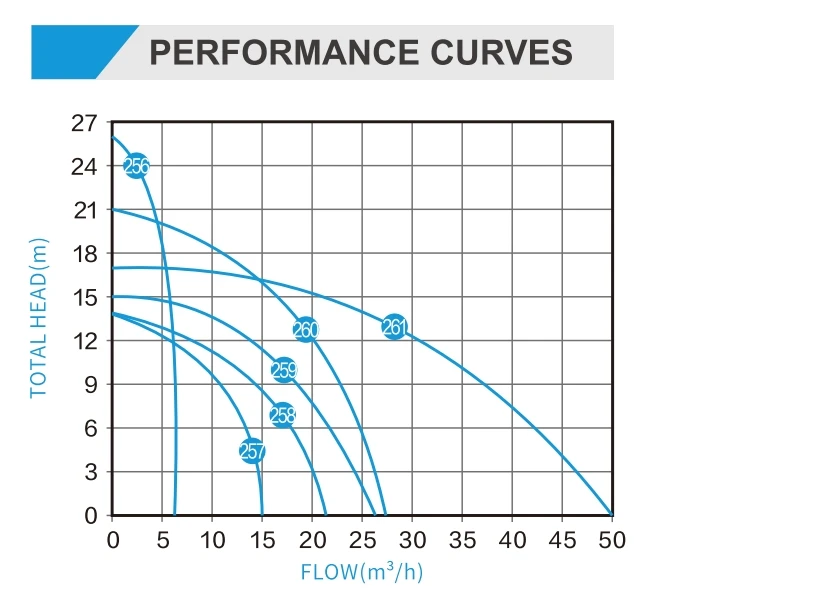

PERFORMANCE CURVES
Tpon Solar Pump

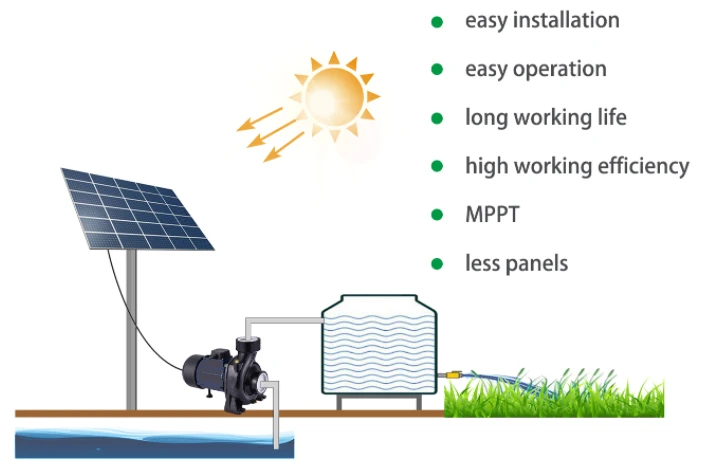

Applications of Outdoor Solar Surface Centrifugal Pound Pumps:
1. Solve domestic drinking water
2. Small scale service industries
3. Livestock watering
4. Agricultural (garden) irrigation
How to Choose the Correct Surface Mount Solar Pump?
Head Calculate:
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank

Flow Calculate:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table.
Tpon Solar Pump

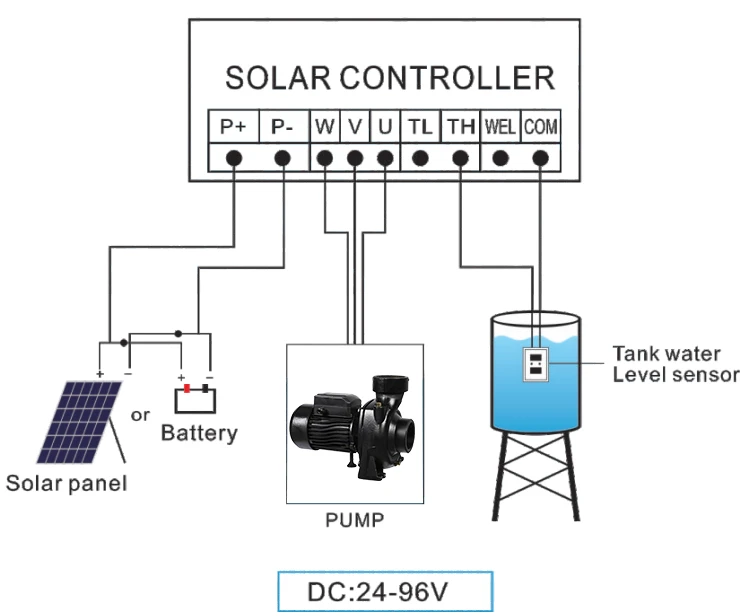

How to Connect the Solar Water Pump
Tpon Solar Pump
Tpon Solar Pump
Working Environment and Electrical Property

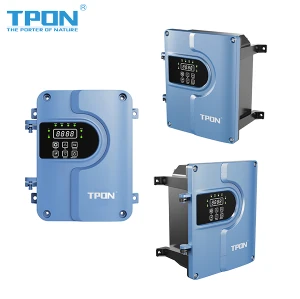

Controller and Pump Matching Method
Controller Model
Adaptable Pump
Max. Input Current(A)
Max. Open Circuit Viltage(V)
MPPT Voltage Range(V)
Working Temperature(°C)
TP-24
Rated 24V pump
17
<48
30-48
-15-60
TP-48
Rated 48V pump
17
<100
60-90
-15-60
TP-72
Rated 72V pump
17
<150
90-120
-15-60
TP-96
Rated 96V pump
17
<200
110-150
-15-60
A set of specifications (Package include):

DC brushless QB solar surface Pump with 0.2m cable  *1
Pump controller with MPPT function *1
Installation kit bag *1   (Inlucde teflon tape, insulation tape, heat-shrinkable tube, check valve, screwdriver, screw and nut, connection terminal)
Tpon Solar Pump
Tpon Solar Pump
About after-service:

 1. We provide 1 years warranty for solar pumps and MPPT controllers.

 2.  We will recommend the suitable solar panels for each solar pump.

 3.  Any installation question, we will provide the connection diagram or installation video for your reference.

 4.  Any installation question, we will provide the connection diagram or installation video for your reference.
Tpon Solar Pump
About stock:

 1.  We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.

 2.  If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
