Model
4/6TPSC-HV Series

Item specifics

Material
Stainless steel
Type
4/6 Inch Solar Well Pump with Stainless Steel Impe
Certificate
CE, ISO9001
Warranty
18 months
MOQ
1 set

Review

Description

Advantages of DC HP Solar Deep Well Water Pump Philippines:
1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.
TECHNICAL DATA
NO.
Model
Power(W)
(AC)Voltage(V)
(DC) Optimum input Voltage(V)
Max flow(m³/h)
Max head(m)
Outlet(inch)
200
4/6 TPSC 30-19-110-1100(HV)
1100
/
110-350
30
19
3″
201
4/6 TPSC 30-31-110-1500(HV)
1500
/
110-350
30
31
3″
202
4/6 TPSC 36-22-110-1500(HV)
1500
/
110-350
36
22
3″
218
4/6 TPSC 30-52-200-1500(HV)
1500
/
200-350
30
52
3″
219
4/6 TPSC 30-70-245-3000(HV)
3000
/
245-300
30
70
3″
221
4/6 TPSC 36-38-200-2200(HV)
2200
/
200-350
36
38
3″
222
4/6 TPSC 36-56-245-3000(HV)
3000
/
245-350
36
56
3″
224
4/6 TPSC 46-51-245-3000(HV)
3000
/
245-350
46
51
3″

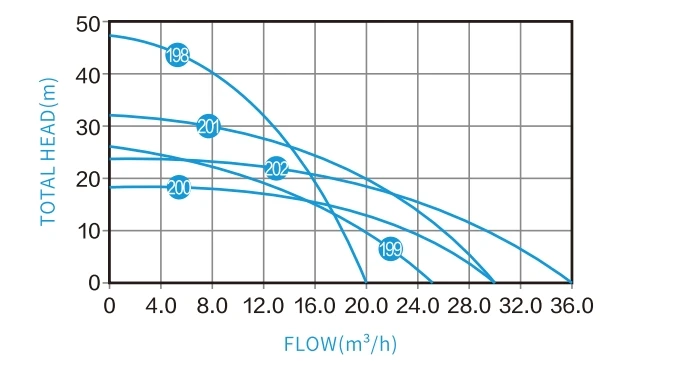

 PERFORMANCE CURVES
4/6TPSC-HV PERFORMANCE CURVES
4/6TPSC-HV PERFORMANCE CURVES
Applications of Solar Water Feature Pump Kit:
1. Solve domestic drinking water
2. Small scale service industries
3. Agriculture and garden irrigation
4. Low flow solar water pump
How to Choose the Correct Solar Powered Water Filter Pump?
Head Calculate:
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank

Flow Calculate:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table.
Tpon Solar Pump
How to Connect the Solar Water Pump
Tpon Solar Pump
Tpon Solar Pump
Working Environment and Electrical Property
Controller and Pump Matching Method
Controller Model
Adaptable Pump
Max. Input Current(A)
Max. Open Circuit Viltage(V)
        Optimun MPPT Voltage                Range (V)
Working Temperature(°C)
TP-24
Rated 24V pump
17
<50
30-48
-15-60
TP-48
Rated 48V pump
17
<100
60-90
-15-60
TP-72
Rated 72V pump
17
<150
90-120
-15-60
TP-96
Rated 96V pump
17
<200
110-150
-15-60
TP-72-A/D
Rated 72V pump
17
<430
100-350
-15-60
TP-110-A/D
Rated 72V pump
17
<430
100-350
-15-60
TP-200-A/D
Rated 72V pump
17
<430
200-350
-15-60
TP-245-A/D
Rated 72V pump
17
<430
245-350
-15-60
TP-300-A/D
Rated 72V pump
17
<430
300-350
-15-60
TP-520-A/D
Rated 72V pump
17-56
<430
520-650
-15-60
TP-110-HV
Rated 72V pump
17
<430
110-350
-15-60
TP-200-HV
Rated 72V pump
17
<430
200-350
-15-60
TP-245-HV
Rated 72V pump
17
<430
245-350
-15-60
Tpon Solar Pump

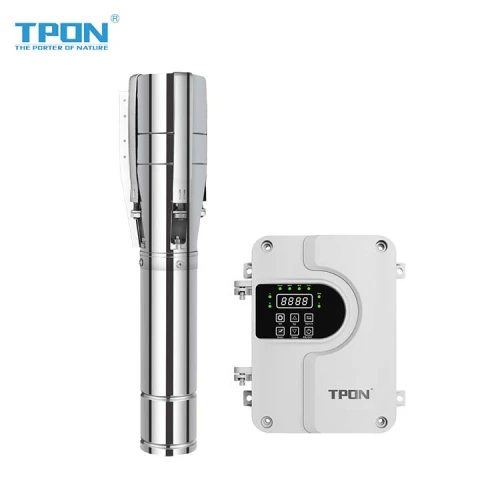

A set of specifications (Package include):

DC brushless solar Pump with 2m cable *1
Pump controller with MPPT function*1
Installation kit bag*1  (Inlucde teflon tape,insulation tape,heat-shrinkable tube,screwdriver,screw and nut,connection terminal)
Tpon Solar Pump
Tpon Solar Pump
About after-service:

 1. We provide 1 years warranty for solar pumps and MPPT controllers.

 2.  We will recommend the suitable solar panels for each solar pump.

 3.  Any installation question, we will provide the connection diagram or installation video for your reference.

 4.  Any installation question, we will provide the connection diagram or installation video for your reference.
Tpon Solar Pump
About stock:

 1.  We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.

 2.  If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
